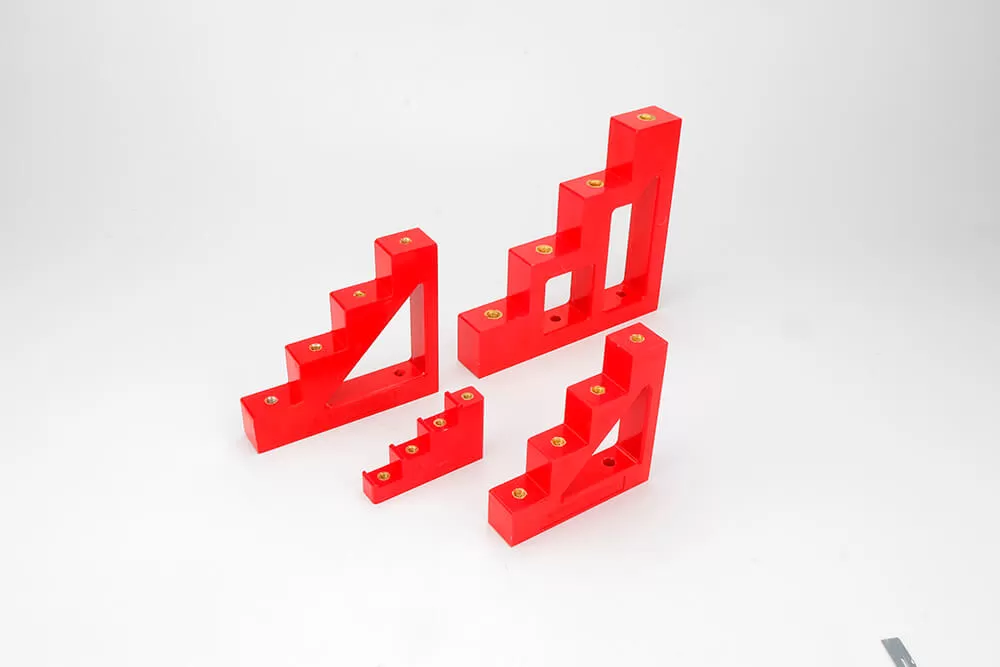

For the bus bar frame option, first confirm the specification of your own copper bar. After confirmation, confirm how many phases your bus bar frame is, how many copper bars in total, and what is the phase to phase distance between each phase copper bar and another phase copper bar. Select the type according to the size you need. The common spacing is 55, 80, 100, 110, 120, 130, 140, 150, 160, 175 and 180 (unit: mm). The number of phases includes single phase, three-phase, four phase and five phase. The copper bars that can be installed in each phase are divided into single row, double row, three row and four row.There is also the size of the mounting screw hole of the busbar clamp.

Heat shrink tubing is a tubular heat-sensitive plastic sleeve that shrinks in diameter when heated. It is used to insulate and protect cables, wires and hoses. Heat shrink tubing can also be used as a covering for cable connectors. When heated, the tube shrinks tightly around the connector, creating a waterproof and corrosion-resistant seal.   Heat shrink tubing provides electrical insulation, mechanical protection, environmental sealing and strain relief. Our heat shrink tubing offers single and double wall tubing designed for a variety of applications including back end connector sealing, breakout and connector-to-cable transitions. It is a reliable alternative to tape, molding or potting.   In addition, our shrink tubing is made of high-quality materials that provide superior protection and insulation. We offer a variety of sizes and colors so you can find the perfect heat shrink tubing for your needs.

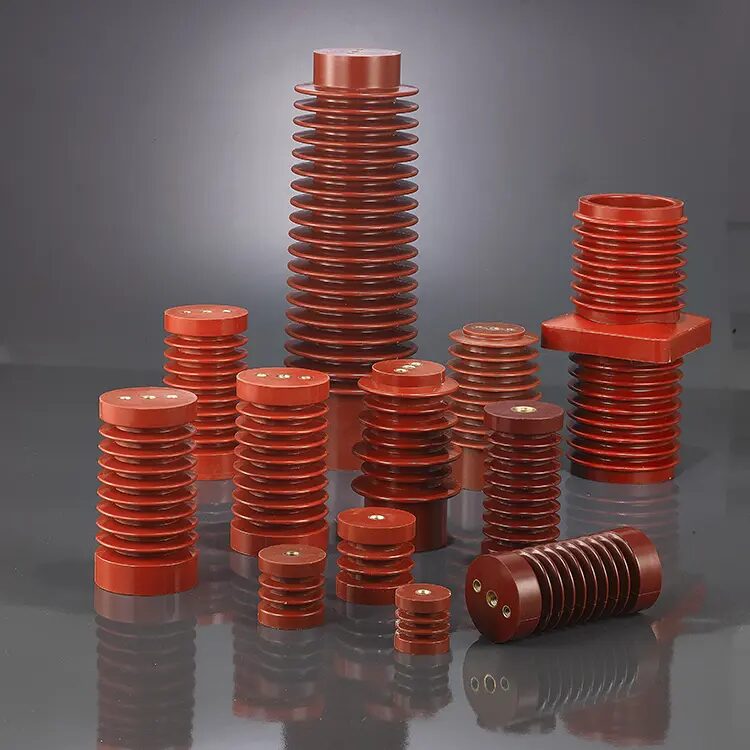

High-voltage insulators are essential components in high-voltage applications. It is designed to protect people and equipment from high voltage electricity. For electrical building maintenance, power plants, substations and other places that require insulation. An electrical insulator is a material that hinders the free flow of electrons. Providing reliability, availability and power density is critical for all modern electrical energy and power systems.

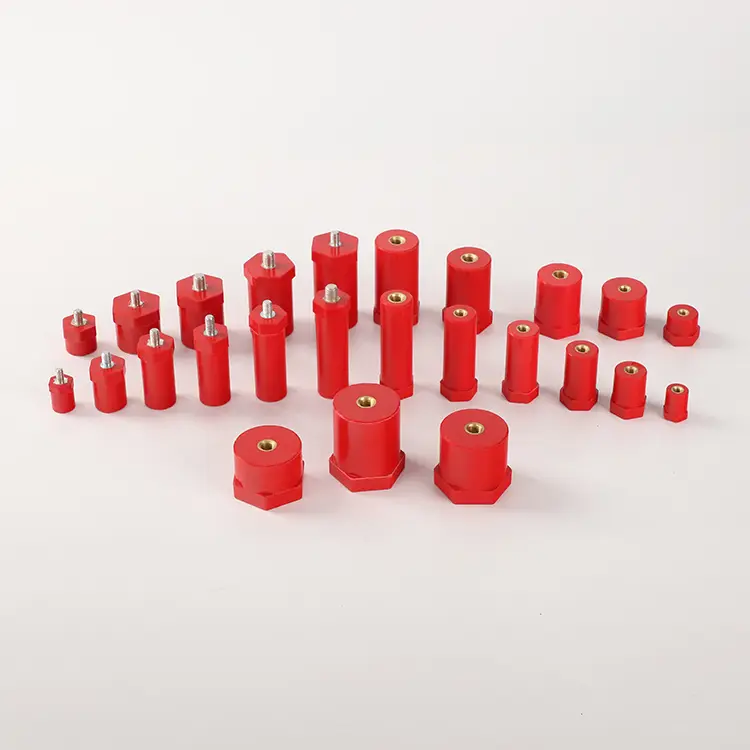

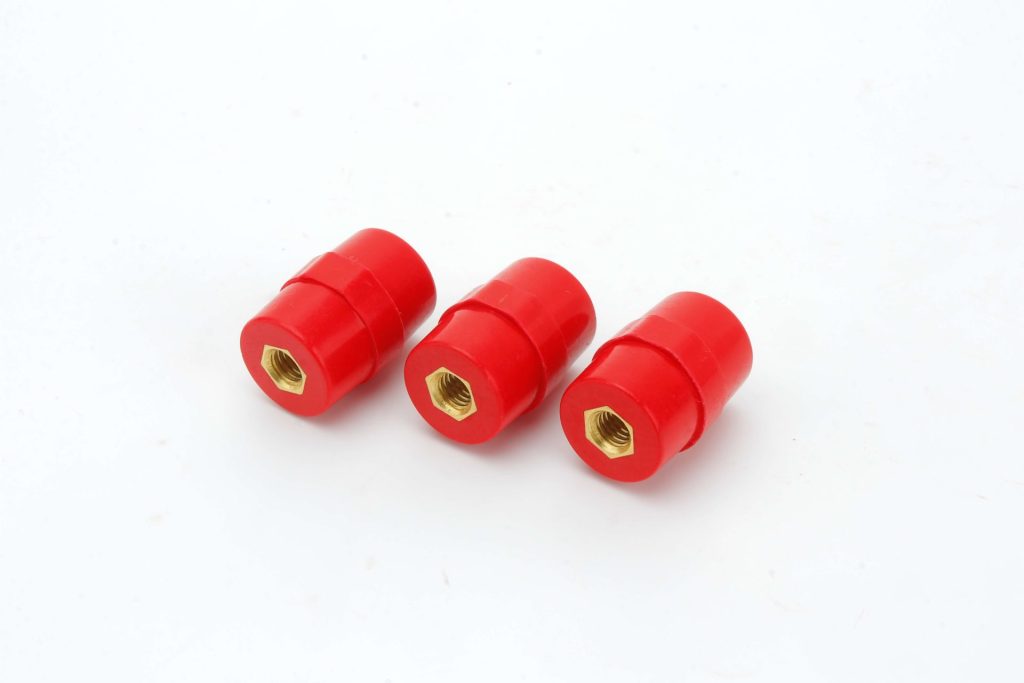

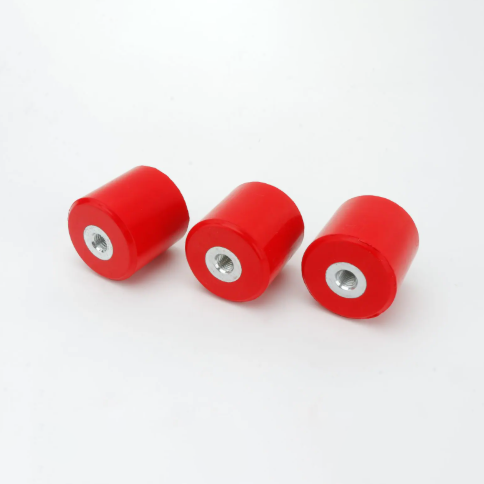

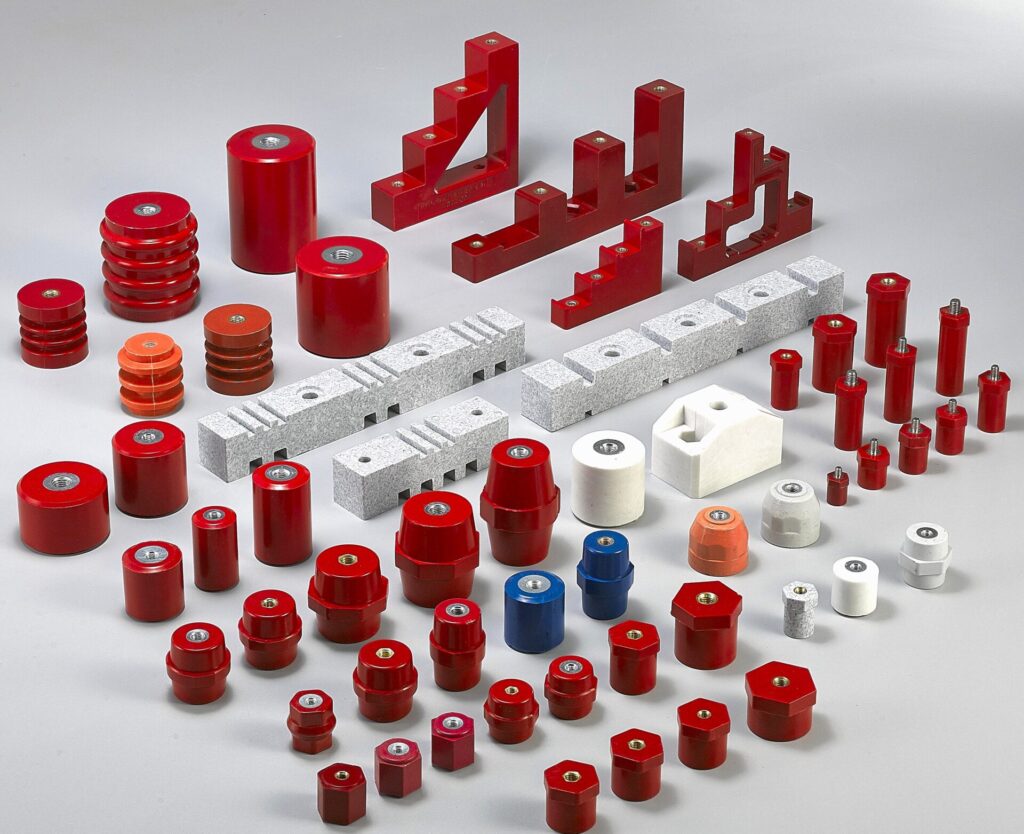

Low voltage insulators are an essential part of any electrical system. It provides the reliable and efficient insulation needed to protect electrical equipment and circuits. It is used to protect people and equipment from injury or damage due to short circuits or overloads in electrical systems. Low-voltage insulators are made of high-quality materials and are durable. Haitan offers a full line of low voltage brackets, cost-effective insulators with extremely high electrical and mechanical parameter stability and very high leakage current resistance.

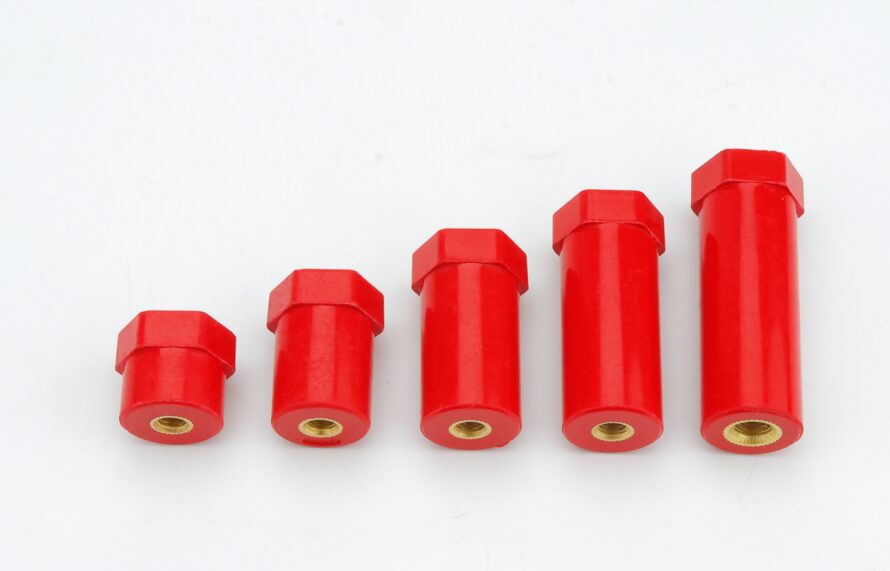

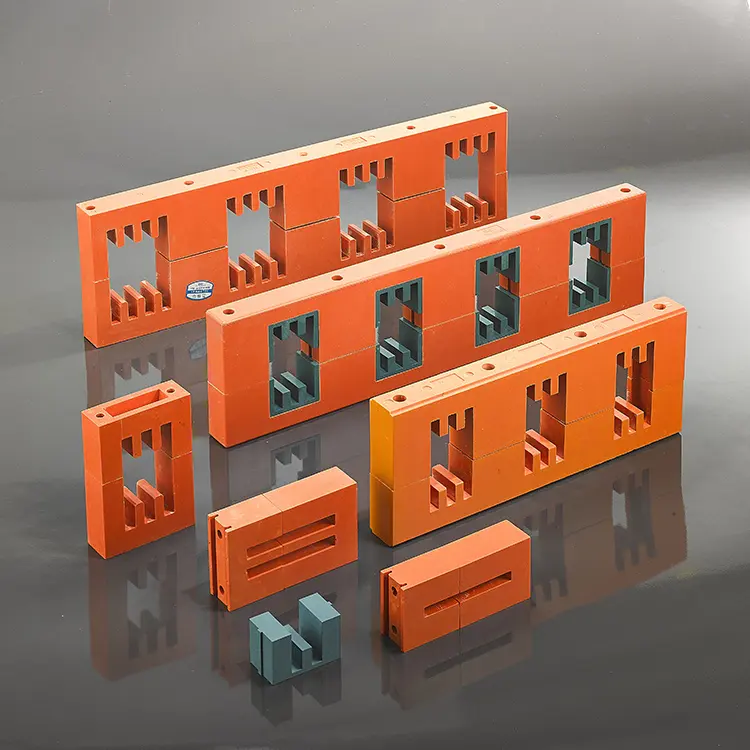

MD bus support busbar frame insulator is made of BMC / SMC, which is used to support the bus circuit system in the same equipment and to support single-phase, three-phase, four phase and five phase buses. It is used for low-voltage distribution lines and communication lines, and is widely used in electrical applications such as distribution box, switchgear, inverter and green power supply.

Marble busbar clamp, foreign trade type

White busbar clamp, small size, convenient storage and flexible combination

Reinforced insulator can be applied to higher strength electrical use

High strength insulator, with higher strength and larger insert, can improve greater support

New energy insulator is suitable for high-strength service environment such as electric vehicle and charging pile, with strong stability and smaller volume

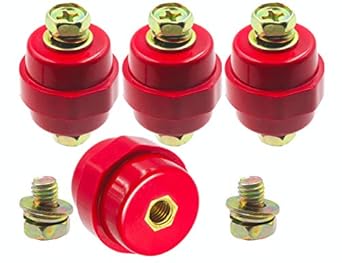

Ordinary insulator, suitable for ordinary wire connection
