Why Testing When Choosing the Right Busbar Support Insulator

1. Introduction

Busbar support insulators are not just another component in your cabinet. They are critical to the safe, stable, and long-term operation of any power distribution system. Whether you’re building an electrical panel, a control cabinet, or an industrial switchgear, choosing the right busbar support insulator can make or break your project. And most importantly, testing is the only way to know you’re getting the performance you need.

This blog will walk you through why testing matters, what to look for, and how to make the right decision based on standards like IEC 60137, UL, and ANSI C29.

2. Why Is the Busbar Support Insulator Important in the Power Distribution Cabinet?

2.1 Electrical Insulation and Safety Isolation

A busbar support insulator provides solid electrical insulation between conductors and grounded parts. This prevents short circuits and keeps your maintenance team safe. It is your first line of safety isolation inside a live electrical panel.

2.2 Mechanical Support and Stability

These insulators also provide mechanical support for heavy busbars. In low or medium voltage cabinets, maintaining stability under load is critical, especially during surges or fault conditions. High strength busbar insulators or standoff insulators for panel boards are designed specifically for this.

2.3 Durability and Reliability

You want an insulator that lasts. Durability under heat, moisture, and vibration ensures your cabinet stays operational for years. A good epoxy busbar support insulator is reliable, even in extreme environments.

2.4 Energy Saving and Maintenance Convenient

Stable support reduces energy losses caused by vibrations and loose connections. At the same time, proper material selection makes maintenance convenient by reducing the chance of premature failure or breakdown.

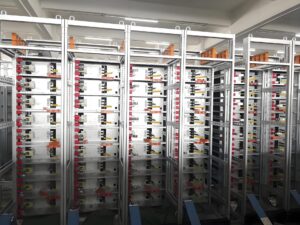

3. Application of Busbar Support Insulator

Busbar support insulators are used across various electrical infrastructure systems:

• Power distribution cabinets
• Low voltage and medium voltage busbar systems
• Industrial switchgear
• Control cabinets and automation systems

They also function as busbar spacers or industrial insulation posts in busbar mounting assemblies.

4. How to Choose the Right Busbar Support Insulator?

Choosing the right busbar support insulator is a technical decision. You’re not just buying a plastic or resin part—you’re selecting a critical component for electrical safety and system reliability. Here’s a comprehensive breakdown of the most essential criteria to evaluate:

4.1 Voltage Withstand Test of Busbar Support Insulator

This test determines the insulator’s ability to resist high voltage stress without electrical breakdown. It ensures the component can perform under its rated working conditions and even temporary overvoltages. In compliance with IEC 60243, busbar insulators for low voltage systems should withstand at least 2.5–5 kV, while medium voltage applications may require higher thresholds.

Why it matters:

• Prevents arc flash and electrical failure
• Ensures safety under peak load
• Validates dielectric strength of epoxy or DMC/SMC materials

4.2 Insulation Resistance of Busbar Support Insulator

High insulation resistance is crucial to avoid leakage currents that may degrade performance over time. A support insulator should retain its resistance in humid, dusty, or corrosive environments. According to IEC 62231 and ASTM D257, top-tier products show insulation resistance ≥ 10^9 ohms.

Why it matters:

• Reduces risk of insulation failure
• Maintains system efficiency in adverse conditions
• Indicates high-quality resin or composite structure

4.3 Torque Test of Busbar Support Insulator

This test verifies the integrity of the metal inserts and their adhesion to the insulating body. When torque is applied during mounting, the insert must remain locked in position.

Why it matters:

• Prevents rotational failure during installation
• Ensures secure electrical connections
• Avoids metal thread pull-out in real-world use

4.4 Tensile Test of Busbar Support Insulator

Tensile testing simulates the vertical force exerted by the weight of copper or aluminum busbars. This test helps verify the component’s resistance to physical separation under load.

Why it matters:

• Critical in vertical or suspended panel configurations
• Ensures structural safety during operation or maintenance
• Commonly tested per IEC 60137 and ANSI C29

4.5 Bending Strength of Busbar Support Insulator

This test applies lateral force to measure how the insulator behaves under vibration, misalignment, and dynamic stress. Bending resistance is particularly important for compact or mobile applications like portable switchgear.

Why it matters:

• Indicates resilience under seismic conditions or equipment movement
• Prevents cracking due to cabinet misalignment
• Supports long-term durability of the busbar mounting structure

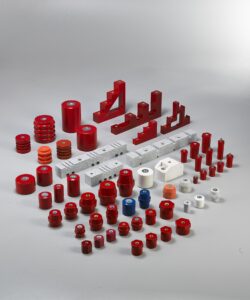

4.6 Material Matters of Busbar Support Insulator

The choice of material influences all mechanical and electrical properties. Options include:

• Epoxy Insulator: High dielectric strength, chemical resistance, and mechanical performance. Ideal for heavy-duty, outdoor, or corrosive environments.
• DMC (Dough Molding Compound): Thermoset compound with good mechanical strength, used in budget-sensitive projects.
• SMC (Sheet Molding Compound): Offers superior molding precision and moderate strength, often used in medium-voltage systems.

Why it matters:

• Different materials suit different applications
• Performance-to-cost balance
• Material must match environmental and operational requirements

4.7 Certification & Standards of Busbar Support Insulator

Look for certifications and compliance marks such as:

• IEC 60137 (Insulated bushings for electrical equipment)
• IEC 62231 (Polymeric materials in electric insulation)
• UL 94, CE marking, ISO 9001
• IEEE C37.23, ANSI C29 (Insulators for switchgear)

Why it matters:

• Assures compliance with global safety and quality standards
• Facilitates project approval in industrial environments
• Confirms rigorous testing procedures have been followed

5. Conclusion

When choosing a busbar support insulator, never skip the testing standards. It’s the only way to ensure electrical insulation, mechanical strength, and long-term reliability. Whether you’re building a power distribution cabinet or upgrading an automation system, your epoxy insulator must meet international norms and pass all mechanical and electrical tests.

Don’t settle for just any busbar insulator. Choose one that has been tested for what really matters—safety, strength, and service life.

For a broader overview of the different types, materials and functions of busbar insulators, please refer to our comprehensive guide:

👉 Busbar Insulator: A Complete Guide
